Frequently Asked Question

How do I create a custom grid to match a project pattern, such as knit pitch?

Most technical projects are much easier to plan and execute when outlined using a graph paper that has exactly the right grid layout, size, and units. For example, making a pattern for a knitting project is much easier when the grid is set to match the knit pitch.

Here are two examples of how make a custom grid for a graph paper to design a knitting project. The first example creates a 2-level grid, the second uses the subdivision feature to create a 3-level grid.

To begin —

This knitting project needs the grid for a knit pitch 0.284cm x 0.145cm.

2-level custom graph paper

For this approach the major grid will be divided into 4 stitches down and 3 stitches across. Setting bold lines at the divisions of 3 across and 4 down will make to easier to design the knitting pattern in Paint.

We'll calculate the size the major grid as a block divided into stitches 4 down and 3 across:

  • 4 stitches x .145cm  down = .58cm

  • 3 stitches x .284cm across = .852cm

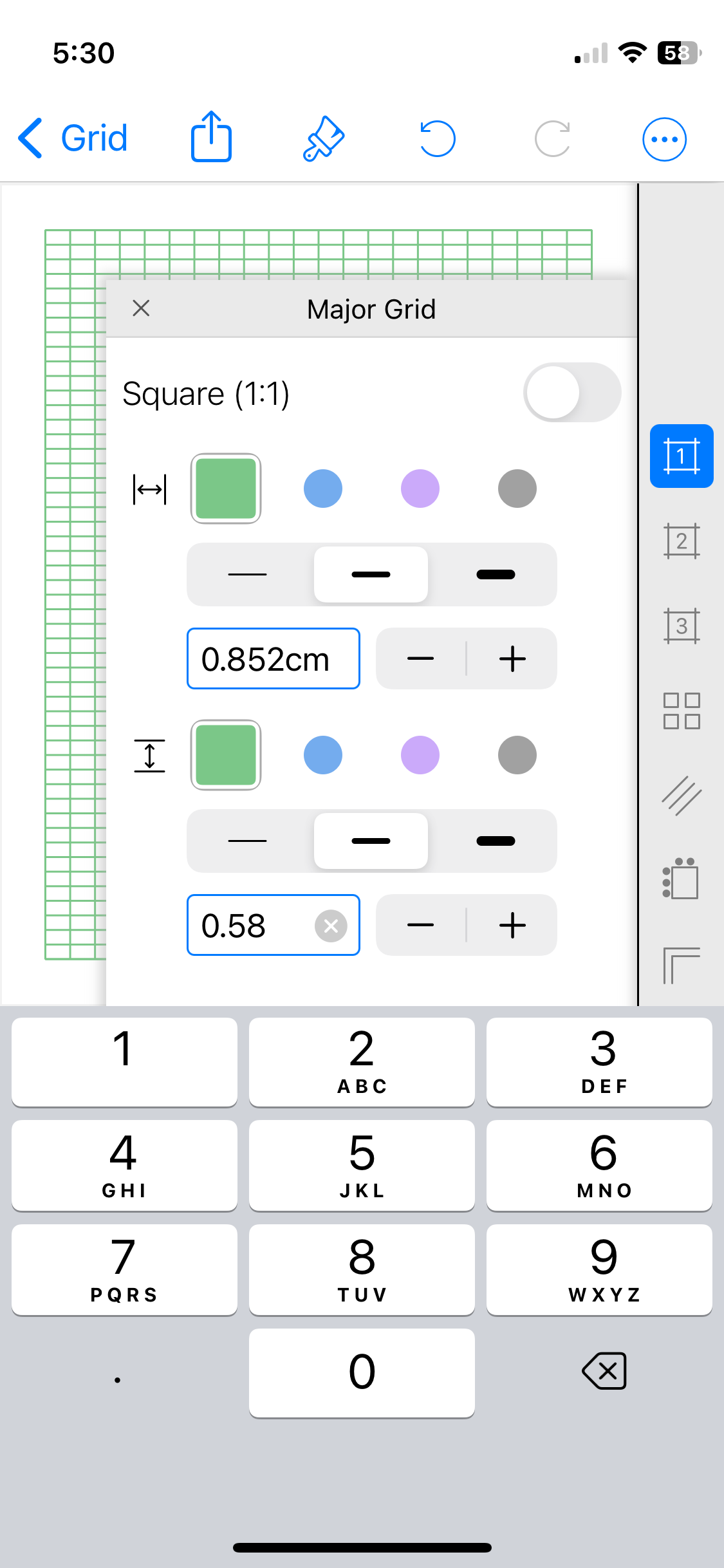

Set the major grid to .852 x .58

Open the minor grid.

  • Start the minor grid by tapping a color dot.

  • Set the grid to 4 down x 3 across and the line weight to light.

Other possible adjustments --
• Set rows & column on the major grid
• Reduce margins to accommodate a larger grid

3-level custom grid using subdivision

Instead the major grid will be divided into 10 stitches:

  • 10 stitches x .145cm  down = 1.45cm

  • 10 stitches x .284cm across = 2.84cm

The blocks of 10 will be further divided into subgroups of 5 stitches to make building the project’s plan just even a bit easier.

Set the Major grid to 1.45 x 2.84 and the line weight to bold.

Next, start the Minor grid (tap a color) and set to 2 per Major and line weight to medium.

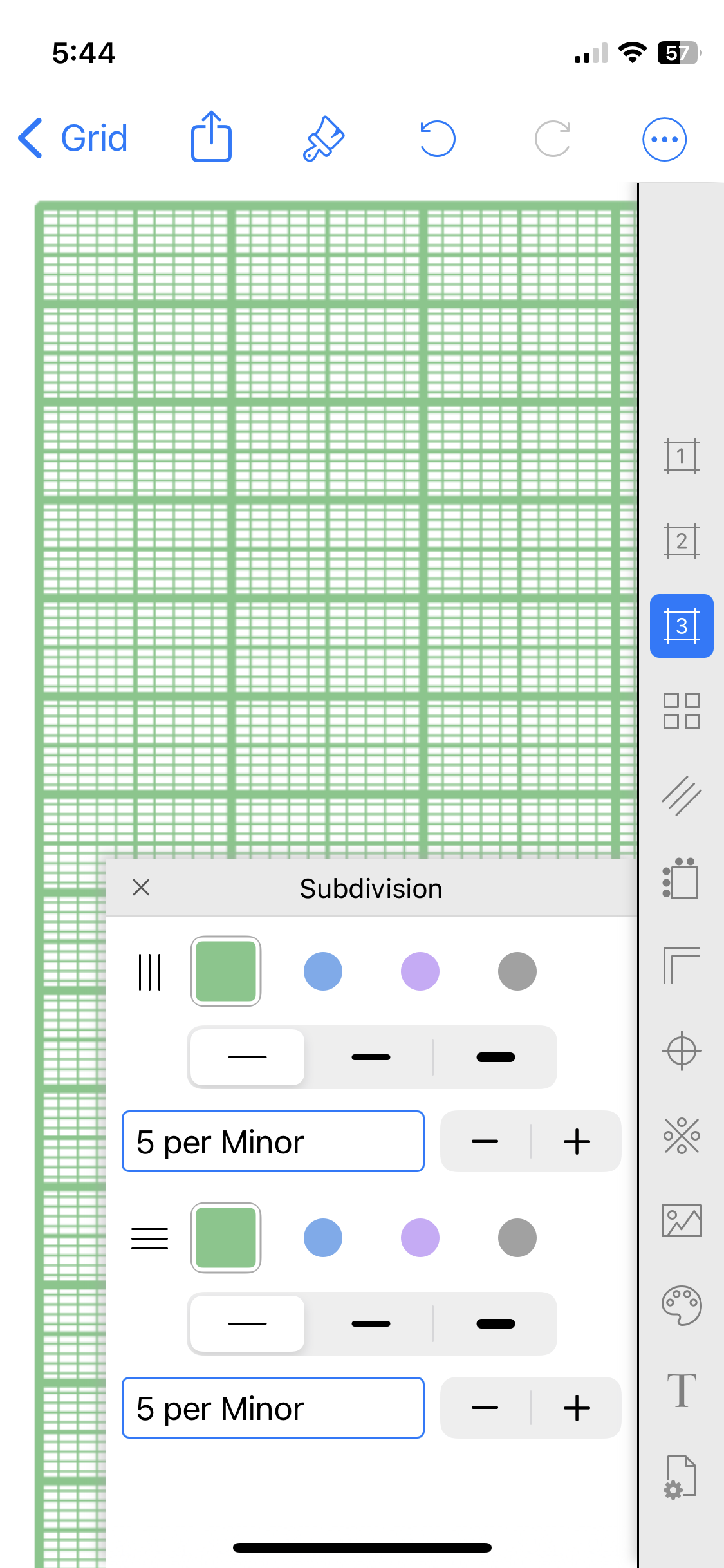

Add a Subdivision and set to 5 per Minor and line weight to fine.

To print complex grids with fine line graph paper, read How do I? on creating a grid with fine lines
